| Business Type | Manufacturer, Exporter, Supplier |
| Type | Horizontal Sliding Automated Parking System |
| Application | Car Parking |
| Material | Metal |

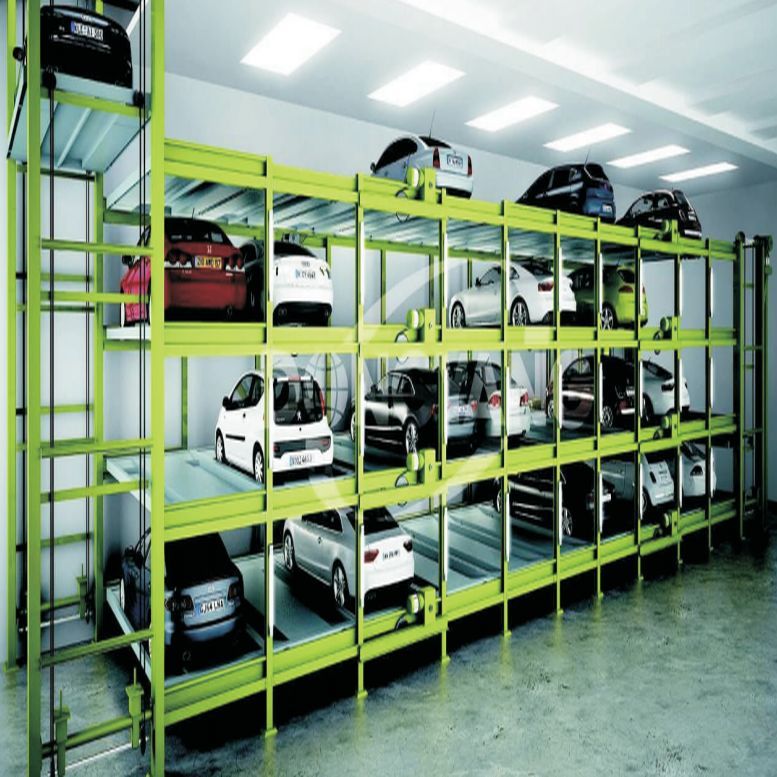

We are a leading Manufacturer, Exporter, and Supplier of Horizontal Sliding Automated Parking System, designed and manufactured in India. Our motorized drive system allows for smooth side-shifting movement, providing easy access for car parking. With a car weight capacity of up to 2500 kg per platform, our PLC-based automated control panel ensures efficient operation. Safety is paramount with anti-collision sensors integrated into the system. Constructed with high-quality metal, our solid structure ensures durability and reliability. Experience the convenience and innovation of our Horizontal Car Parking System for efficient parking solutions.
Technical Specification
| Technical Specification | Details |
| Model | Horizontal Circulation System (PD-HCS) |
| System Dimension | L-63000 x W-13300 x H-14000 |
| Car Dimension | Sedan – L-5000 x W-2000 x H-1700 |
| Qty. of Car / System | 16 NOS |
| Weight | 2000 Kg |
| Inside Pallet Width | All LVL – 2100 MM |
| No. of Level | 6 LVL - (1/3/3/3/3/3) |
| Lifting Motor | Motor – 25 HP (18.5 kW) x 4P |
| Sliding Motor | Motor – 7.5 HP (5.5 kW) x 4P |
| Lifting Speed | 10–12 Meter/Minute |
| Sliding Speed | 5–7 Meter/Minute |
| Control | PLC |
| Operation | HMI |
| Electric Power | AC 415V x 3Phase x 50Hz + Earthing |
| Safety Feature | 1) Limit switch 2) Sensor 3) RFID |
