| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Type | Hydraulic Two-level Stack Parking |
| Click to view more | |
Product Details
Capacity
2 Cars Per Unit
Lifting System
Hydraulic Cylinder With Chain Drive
Lifting Capacity
Up To 2500 Kg Per Platform
Lifting Height
1800-2100 Mm
Finish
Powder-coated
Technical Specification
| Attribute | Specification |
| Model | Hydraulic Stack Parking (PDHS G+1) |
| System Dimension | L-5000 X W-2500 X H-4000 |
| Car Dimension - On G.F | L-5000 X W-2000 X H-2000 |
| Car Dimension - Above G.F | L-5000 X W-2000 X H-1700 |
| Qty. of Car / System | 02 NOS. |
| Weight | 2000 Kg |
| Inside Pallet Width | 2100 MM |
| Hydraulic Power Pack - Motor | 2 HP (1.5kW) X 4P |
| Hydraulic Power Pack - Pump | 9-12 LPM |
| Control | Relay Logic |
| Operation | Key switch |
| Electric Power | AC 415V X 3Phase X 50 Hz +Earthing |
| Safety Feature | 1) Limit switch 2) Mechanical Lock |

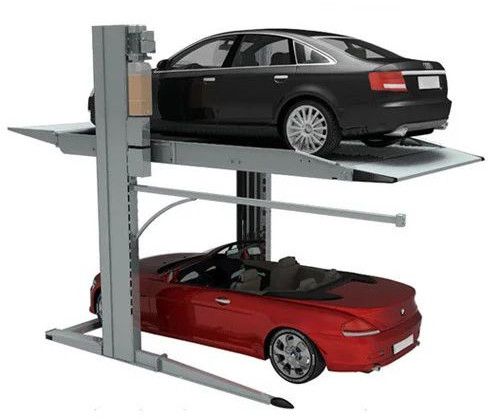

Looking for "G+1 Hydraulic Stack Car Parking System" ?
