| Business Type | Manufacturer, Exporter, Supplier |
| Type | G+1 (Two-Level) Puzzle Type Parking System |
| Country of Origin | India |
| Capacity | Multiple Cars (typically 2-6 Cars Per Module) |
| Click to view more | |
Product Details
Lifting Capacity
Up To 2000-2500 Kg Per Platform
Lifting Height
1800-2000 Mm (customizable)
Safety Features
Anti-fall Device, Overload Protection, Limit Switches

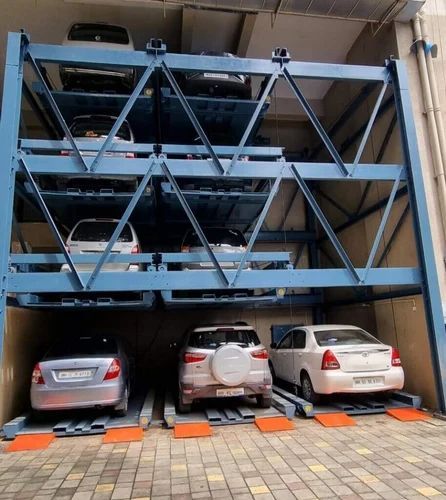

We are a leading Manufacturer, Exporter, and Supplier of the innovative G+1 Puzzle Car Parking System from India. Our two-level parking system can accommodate multiple cars, typically 2-6 cars per module, with a lifting capacity of up to 2000-2500 kg per platform. The lifting height is customizable between 1800-2000 mm. Safety is paramount with our anti-fall device feature. Experience efficient and space-saving parking solutions with our G+1 Puzzle Car Parking System.
Technical Specification
| Specification | Details |
| Model | Hydraulic Puzzle Parking (PDHP G+1) |
| System Dimension | L-5800 X W-7700 X H-4100 |
| Car Dimension (On G.F) | L-5000 X W-2000 X H-2000 |
| Car Dimension (Above G.F) | L-5000 X W-2000 X H-1700 |
| Qty. of Car / System | 05 NOS. |
| Weight | 2000 Kg |
| Inside Pallet Width | 2100 MM |
| Hydraulic Power Pack - Motor | 2 HP (1.5 Kw) X 4P |
| Hydraulic Power Pack - Pump | 9-12 LPM |
| Control | PLC |
| Operation | HMI |
| Electric Power | AC 415V X 3Phase X 50 Hz + Earthing |
| Safety Feature | 1) Limit Switch 2) Mechanical Lock 3) Sensor 4) RFID |
