Product Details
Type

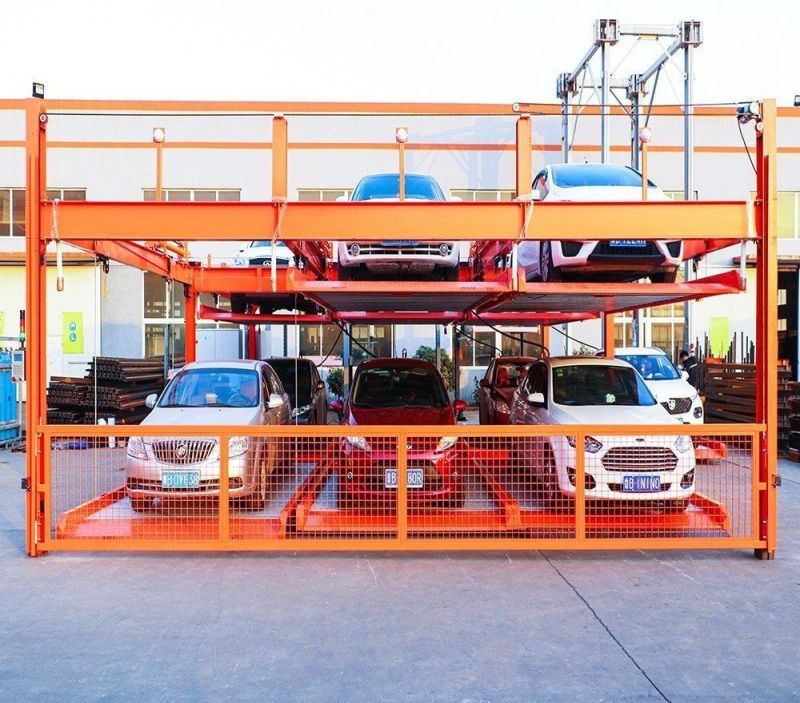

G+1-1 (Three-Level) Hydraulic Puzzle Parking System
Capacity
3-9 Cars Per Module
Lifting Capacity
Up To 2000-2500 Kg Per Platform
Lifting Height
1800-2100 Mm Per Level
Operation
PLC-based Fully Automated Control System
Safety Features
Anti-fall Protection, Limit Switches & Overload Safety
We are a leading Manufacturer, Exporter, and Supplier of the G+1-1 Hydraulic Puzzle Parking System from India. Our ISO 9001:2008 certified system operates at 415V voltage, offering a three-level design with a capacity of 3-9 cars per module. Each platform can lift up to 2000-2500 kg, reaching heights of 1800-2100 mm per level. The PLC-based fully automated control system ensures efficient operation, while safety features like anti-fall protection provide peace of mind. Experience the convenience and reliability of our innovative parking solution for your business or commercial space.
Technical Specification
| Specification | Details |
| Model | Hydraulic Pit Puzzle Parking (PDHP G+1-1) |
| System Dimension | L-5500 X W-2500 X H-4100 X Pit-2200 |
| Car Dimension On G.F | L-5000 X W-2000 X H-2000 |
| Car Dimension Above G.F | L-5000 X W-2000 X H-1700 |
| Car Dimension In Pit | L-5000 X W-2000 X H-1550 |
| Qty. of Car / System | 08 NOS. |
| Weight | 2000 Kg |
| Inside Pallet Width (G+1 LVL) | 2100 MM |
| Inside Pallet Width (G.F LVL) | 2100 MM |
| Inside Pallet Width (G-1 LVL) | 2100 MM |
| Hydraulic Power Pack (Motor) | 2 HP (1.5kW) X 4P |
| Hydraulic Power Pack (Pump) | 9-12 LPM |
| Control | PLC |
| Operation | HMI |
| Electric Power | AC 415V X 3Phase X 50 Hz +Earthing |
| Safety Feature | 1) Limit switch 2) Mechanical Lock 3) Sensor 4) RFID |
