| Business Type | Manufacturer, Exporter, Supplier |
| Power | 1-3kw |
| Certification | ISO 9001:2008 Certified |
| Country of Origin | India |
| Click to view more | |
Product Details
Type

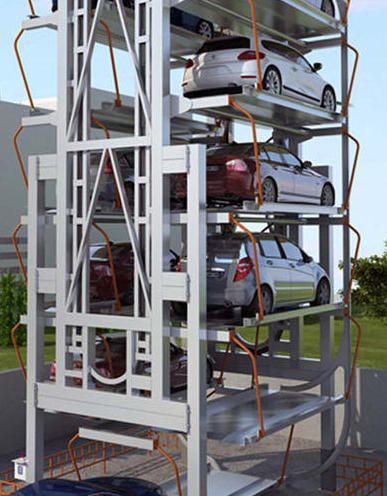

Vertical Rotary / Carousel Type Parking System
Capacity
6-12 Cars
Car Weight Capacity
Up To 2300 Kg Per Parking Pallet
Rotation Speed
2-3 Minutes Per Retrieval Cycle
Safety Features
Mechanical Lock, Emergency Stop & Overload Protection
Technical Specification
| Parameter | Specification |
| Model | Rotary Parking System (PD-RPS-8/10/12/14) |
| System Dimension | L-6400 X W-5100 X H-9900/11700/13500/15300 |
| Car Dimension | Sedan - L-5000 X W-2000 X H-1700 |
| Qty. of Car / System | 8/10/12/14 NOS. |
| Weight | 2000 Kg |
| Inside Pallet Width | All LVL - 2100 MM |
| Lifting Motor | Motor 20 HP (15 Kw) X 4P |
| Lifting Speed | 10-12 Meter/Minute |
| Control | PLC |
| Operation | HMI |
| Electric Power | AC 415V X 3Phase X 50 Hz + Earthing |
| Safety Feature | 1) Limit switch 2) Sensor 3) RFID |
